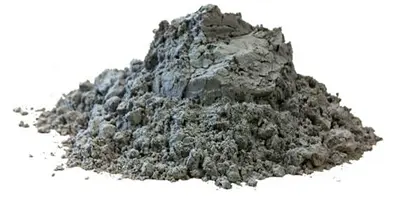

PIFILL

Product Grade Form Application Special Feature
China Clay PI FILL Powder. PI FILL Very low moisture content & hence good free flowing properties, good oil absorption, fine particle size distribution,good coverage.

Physical Analysis

Description Analysis
Moisture(w/w) % (max) 1
pH 7-8
Oil absorption(ml/100 gm) 57
Suspension(% in 24 hours) good
-2 micron(w/w) % (min) 65
+300 mesh retention(w/w) % (max) 0.40
Water of plasticity (%) 27
Bulk density(g/cc) untapped tapped 0.3-0.48
Gloss(taking MgO as 100%) 92
Fired gloss (%) 96

Chemical Analysis

Description Analysis
SiO2 45.05
Al2O3 37.51
Fe2O3 0.56
CaO+MgO 0.22
TiO2 0.72
Na2O + KM2O 0.31
L.I.O 13.84
The results mentioned are determined by our standard laboratory test methods. Every precaution is taken in production to ensure that the product confirms to our published results; but as the material is a naturally occurring mineral, Ashapura China Clay Co. reserves the right to change the data, whenever it becomes necessary
